150R2R R&D coater series

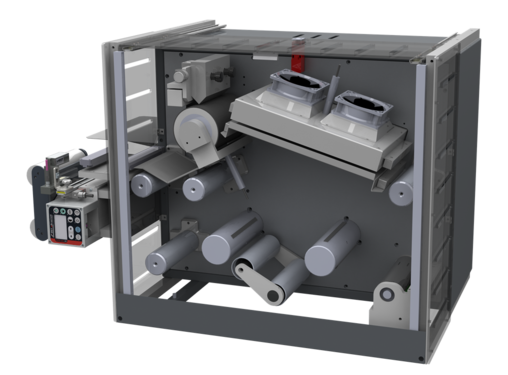

The mini roll to roll (R2R) coater of the 150R2R R&D series is an easy to use entry platform for a large range of research and development applications.

The 150R2R series is developed to mimic processing in a roll-to-roll machine without the high material consumption and with minimized start up time. It is a hands-on, precise instrument for different coating techniques to deposit any solution-processable material onto flexible substrates. The system can be installed in a glovebox to process in inert (nitrogen/argon) atmosphere. The mainly featured coating technique is slot die coating, but a large range of other techniques can be integrated as well. The system can operate in drum, loop and R2R mode to cover different R&D steps from first coating trials to mimicing actual production of the coated films. The 150R2R series has a wide range of further options like web cleaning, oven and characterization options. Please contact us to tailor your 150R2R coater for your application.

Contact

Coater versions for different applications

We offer our coating machines tailored to specific applications in the field of printed electronics and functional films. Just contact us to customize you specific configuration with different coating methods (slot die, gravure, flexographic, screen printing and many more), treatment units (Hot air, IR, UV), laser patterning, characterization/inspection/quality control units and versatile backend options (lamination, slitting, busbar/conductive tape).

  • SOLAR150R2R - Coater version for working on the upscaling and prodution of organic and perovskite photovoltaic technologies

    • Heatable ink supply system to process polymer and small molecule inks
    • Nitrogen air blades to process perovskite films
    • Inline laser patterning capability
    • Machines available including module manufacturing process
  • BAT150R2R - Dedicated coater series to process films for batteries

    • Coating separators and electrodes for Li-Ion batteries
    • Coating films for solid state batteries in inert (nitrogen/argon) conditions
  • OLED150R2R - Our coater series for manufacturing OLEDs

    • Processing OLEDs for lighting applications
    • Coating of OLED display materials with laser patterning
  • FC150R2R - Our coater version for fuel cell applications

    • Coating of membranes for fuel cells

Ready to get started?

If you have any questions, please get in touch - we'll be glad to answer any questions you may have about our coater systems; how to integrate it into your lab workfow, and how quickly we can get this equipment delivered to your laboratory.

Contact us now

Quick lead time

We are working as quickly as we can to deliver equipment systems around the world. Enquire today to order yours.

SCIPRIOS support

As with every SCIPRIOS system, we offer support packages, and each product comes with a full 2-year warranty.
