Characterization Robot
An automated, customizable characterization, analysis and measurement robot
Our robotic platform uses a graphical user interface to perform the measurement process. Automation allows unsupervised measurement of hundreds of substrates. Multiple measurement systems can be integrated in one platform. Database capability. Storage of experimental procedures and analysis routines to repeat experiments with a different set of samples or measuring multiple times with varying parameters.
Effective and efficient materials science
Automation and precision
The Characterization Robot automates the measurement of samples and solutions. Experiments with varying parameters can be performed without operator influence ensuring reproducibility with increased speed and control. Get optimum results every time.
Fully automated optoelectronic characterization of
- Series of identical samples
- Multi-layer stacks
- Variations in measurement parameters
System based on a robotic arm with pipetting module and gripper to transport substrates, substrate carriers and vial lids.

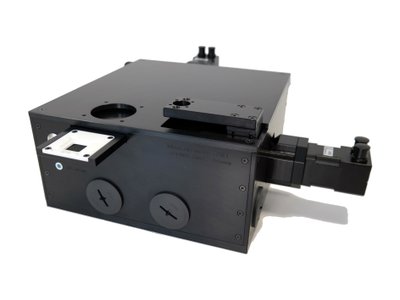

Characterization - Optical and electrical characterization unit / OEMU
- XY-Stages for sample positioning without blocking the main robot
- One measurement stage for optical measurements (e.g. transmission) and electrical measurements (e.g. conductivity) with customized contact pin layout
- Automated measurement of the samples after manufacturing
Customization Options
All of our systems can be tailored to fit your needs. Individual modules can be mixed or matched to create the ideal automated solution for your laboratory. Here are a few of the multiple options SCIPRIOS offers. Do you need something specific? Get in contact with us and we will be happy to create a solution that works for your laboratory!
-
Substrate Annealing Station
Fully-automated and robot-compatible annealing up to 310° C
-
Premium Ink Handler
Fast, spring-loaded access to inks with tight PTFE sealing for volatile solvents.
-
Active Ink Treatment Station
Heating up to 99°C with inks, stirring between 50-1500 RPM
-
Optical & Electrical Measurement Unit
Computer-contolled xy sample stage with substrate adapter
-
Ink Storage Position for Vials with Lids
Customized adapter plate for three types of vials.
-
Perovskite Gas Quenching Upgrade
Computer-controlled valve for nitrogen treatment.
-
Perovskite Vacuum Quenching Upgrade
Vacuum chamber adapter to substrate size.
-
Glovebox Integration Kit
Feedthrough plate for all cables between electrical cabinet and robotic platform.
-
Absorption & Photoluminescence Measurement System UV-VIS
Fiber-based Si detector configured for measurements in the UV-VIS wavelength range (300-960 nm).
-
Cotton Bud Edge Remover
Eight cotton bud holders in one unit.
-
Photo Station (10 MP)
Capable of imaging substrates as large as 50 x 50 mm.
-
LED Illumination Source
White LED capable of illuminating substrates up to one sun.
-
Air Knife for Perovskite Gas Quenching
Positioned by the robot for treatment application.
