MAPs (Material Acceleration Platforms)
Our robotic systems are designed for seamless scalability to larger platforms, where multiple robots operate collaboratively on both hardware and software levels. Through a unified control software, we enable the coordinated management of SpinCoating, BladeCoating, Characterization, additional SCIPRIOS robots, as well as third-party equipment. These additional components include a wide range of tools, from measurement modules to vacuum evaporation units.
We also offer flexible housing options tailored to project requirements, ranging from safety enclosures to inert-gas environments.
Contact us to discuss your project and join us on the path toward fully autonomous, self-driving materials science laboratories!
SCIPRIOS MAPs combine flexibility, speed, and seamless integration to accelerate advanced materials research.
Customization Options
All of our systems can be tailored to fit your needs. Individual modules can be mixed or matched to create the ideal automated solution for your laboratory. Here are a few of the multiple options SCIPRIOS offers. Do you need something specific? Get in contact with us and we will be happy to create a solution that works for your laboratory!
-
Substrate Annealing Station
Fully-automated and robot-compatible annealing up to 310° C
-
Premium Ink Handler
Fast, spring-loaded access to inks with tight PTFE sealing for volatile solvents.
-
Active Ink Treatment Station
Heating up to 99°C with inks, stirring between 50-1500 RPM
-
Optical & Electrical Measurement Unit
Computer-contolled xy sample stage with substrate adapter
-
Ink Storage Position for Vials with Lids
Customized adapter plate for three types of vials.
-
Perovskite Gas Quenching Upgrade
Computer-controlled valve for nitrogen treatment.
-
Perovskite Vacuum Quenching Upgrade
Vacuum chamber adapter to substrate size.
-

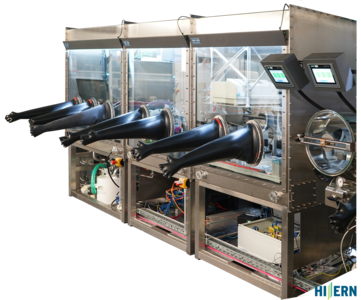

Glovebox Integration Kit
Feedthrough plate for all cables between electrical cabinet and robotic platform.
-
Absorption & Photoluminescence Measurement System UV-VIS
Fiber-based Si detector configured for measurements in the UV-VIS wavelength range (300-960 nm).
-
Cotton Bud Edge Remover
Eight cotton bud holders in one unit.
-
Photo Station (10 MP)
Capable of imaging substrates as large as 50 x 50 mm.
-
LED Illumination Source
White LED capable of illuminating substrates up to one sun.
-
Air Knife for Perovskite Gas Quenching
Positioned by the robot for treatment application.
Ready to get started with SCIPRIOS?
Join the world’s leading institutions already using our equipment.
