SpinCoating Robot

A fully automated, customizable robot for labs

Our robotic platform uses a graphical user interface to control the deposition process. Automation allows processing of hundreds of substrates. Speeds of one substrate per minute are possible using multiple spincoaters in parallel. Full process control and reproducibility. Database capability. Storage of process parameters and measurement results per sample.

Contact us now

SCIPRIOS SpinCoating Robot in action

Effective and efficient materials science

Automation and precision

The SpinCoating Robot automates the process of creating thin films from solutions. Experiments with varying parameters can be performed without operator influence ensuring reproducibility. Gain ultimate control - down to the microliter and millisecond! Get optimum results every time.

Fully automated processing and optoelectronic characterization of

Series of identical samples
Multi-layer stacks
Variations in parameters: spin speed, ink, annealing temperatures…

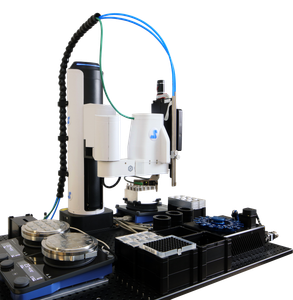

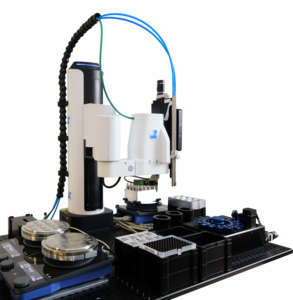

System based on a robotic arm with pipetting module and gripper to transport substrates, substrate carriers and vial lids.

Customization Options

All of our systems can be tailored to fit your needs. Individual modules can be mixed or matched to create the ideal automated solution for your laboratory. Here are a few of the multiple options SCIPRIOS offers. Do you need something specific? Get in contact with us and we will be happy to create a solution that works for your laboratory!

Substrate Annealing Station
Fully-automated and robot-compatible annealing up to 310° C
Premium Ink Handler
Fast, spring-loaded access to inks with tight PTFE sealing for volatile solvents.
Active Ink Treatment Station
Heating up to 99°C with inks, stirring between 50-1500 RPM
Optical & Electrical Measurement Unit
Computer-contolled xy sample stage with substrate adapter
Ink Storage Position for Vials with Lids
Customized adapter plate for three types of vials.
Perovskite Gas Quenching Upgrade
Computer-controlled valve for nitrogen treatment.
Perovskite Vacuum Quenching Upgrade
Vacuum chamber adapter to substrate size.
Glovebox Integration Kit
Feedthrough plate for all cables between electrical cabinet and robotic platform.
Absorption & Photoluminescence Measurement System UV-VIS
Fiber-based Si detector configured for measurements in the UV-VIS wavelength range (300-960 nm).
Cotton Bud Edge Remover
Eight cotton bud holders in one unit.
Photo Station (10 MP)
Capable of imaging substrates as large as 50 x 50 mm.
LED Illumination Source
White LED capable of illuminating substrates up to one sun.
Air Knife for Perovskite Gas Quenching
Positioned by the robot for treatment application.
