CAMBot

An automated, customizable Characterization, Analysis and Measurement (CAM) Bot

Our robotic platform uses a graphical user interface to perform the measurement process.  Automation allows unsupervised measurement of hundreds of substrates. Multiple measurement systems can be integrated in one platform. Database capability.  Storage of experimental procedures and analysis routines to repeat experiments with a different set of samples or measuring multiple times with varying parameters.

Contact us now

Effective and efficient materials science

Automation and precision

The CAMBot automates the measurement of samples and soluitons.  Experiments with varying parameters can be performed without operator influence ensuring reproducibility with increased speed and control. Get optimum results every time.

Fully automated optoelectronic characterization of

  • Series of identical samples
  • Multi-layer stacks
  • Variations in measurement parameters

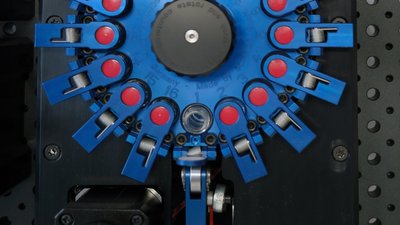

System based on a robotic arm with pipetting module and gripper to transport substrates, substrate carriers and vial lids.

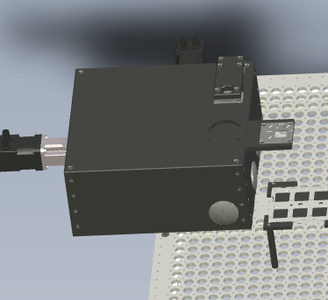

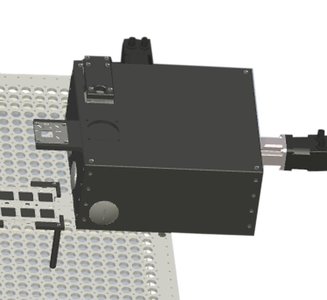

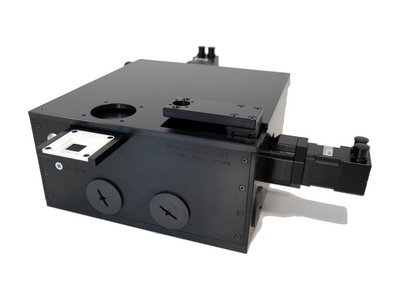

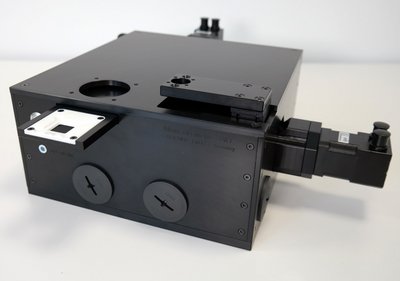

Characterization - Optical and electrical characterization unit / OEMU

-XY-Stages for sample positioning without blocking the main robot

-1 measurement stage for optical measurements with different fiber-based light sources and spectrometers for absorption and photoluminescence measurements

-1 measurement stage for electrical measurements with customized contact pin layout for IV characterization

-Further measurement methods available on request:

  • Transient electrical: Transient photovoltage (TPV), Transient photocurrent (TPC), Charge extraction (CE), (Photo-)Charge extraction by linearly increased voltage (CELIV)
  • Photo-induced absorption (PiA), (Transient-)photoluminescence (PL)
  • Electroluminescence (EL)
  • Laser beam induced current (LBIC)

Customization Options

All of our systems can be tailored to fit your needs.  Individual modules can be mixed or matched to create the ideal automated solution for your laboratory.  Here are a few of the multiple options SCIPRIOS offers.  Do you need something specific?  Get in contact with us and we will be happy to create a solution that works for your laboratory!

Ready to get started?

If you have any questions, please get in touch - we'll be glad to answer any questions you may have about our CAMBot module, how to integrate it into your lab workfow, and how quickly we can get this equipment delivered to your laboratory.

Contact us now



Quick lead time

We are working as quickly as we can to deliver equipment systems around the world. Enquire today to order yours.

SCIPRIOS support

As with every SCIPRIOS system, we offer support packages, and each product comes with a full 2-year warranty.
